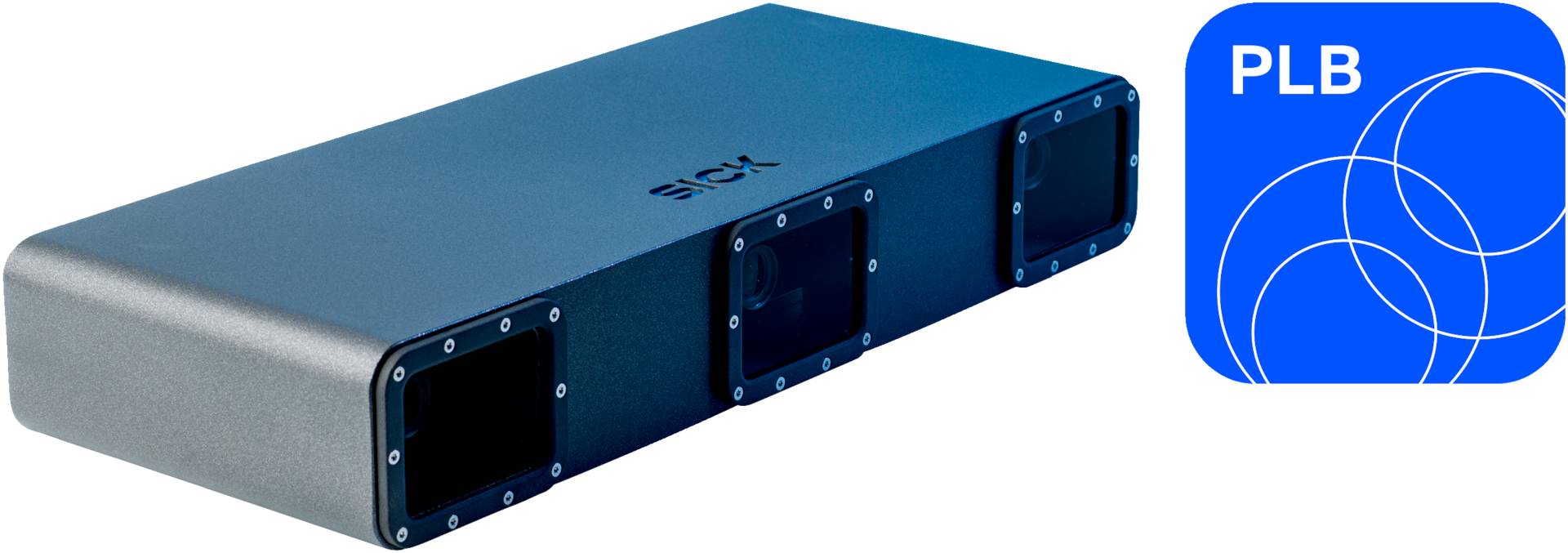

Sick PLB-5340100, Roboterleitsystem, P/n: 1115867
EAN:
Hst.-Teile-Nr.:
Bestell-Nr.:
1 Stück
Neu
Rechnungsstellung für alle Partner-Artikel jetzt direkt durch ConradAnzahl
Gesamt
36.305,43 €
zzgl. MwSt.
& Kostenfreier Versand
Nur noch 1 Stück verfügbar
14 Tage Rückgaberecht inklusive
Technische Daten
- Sub product family: PLB520 5MP
- Field of view: Large
- Classification: Prime
- Tasks: Position determination
- Applications: Robot guidance
- Camera type: 3D snapshot

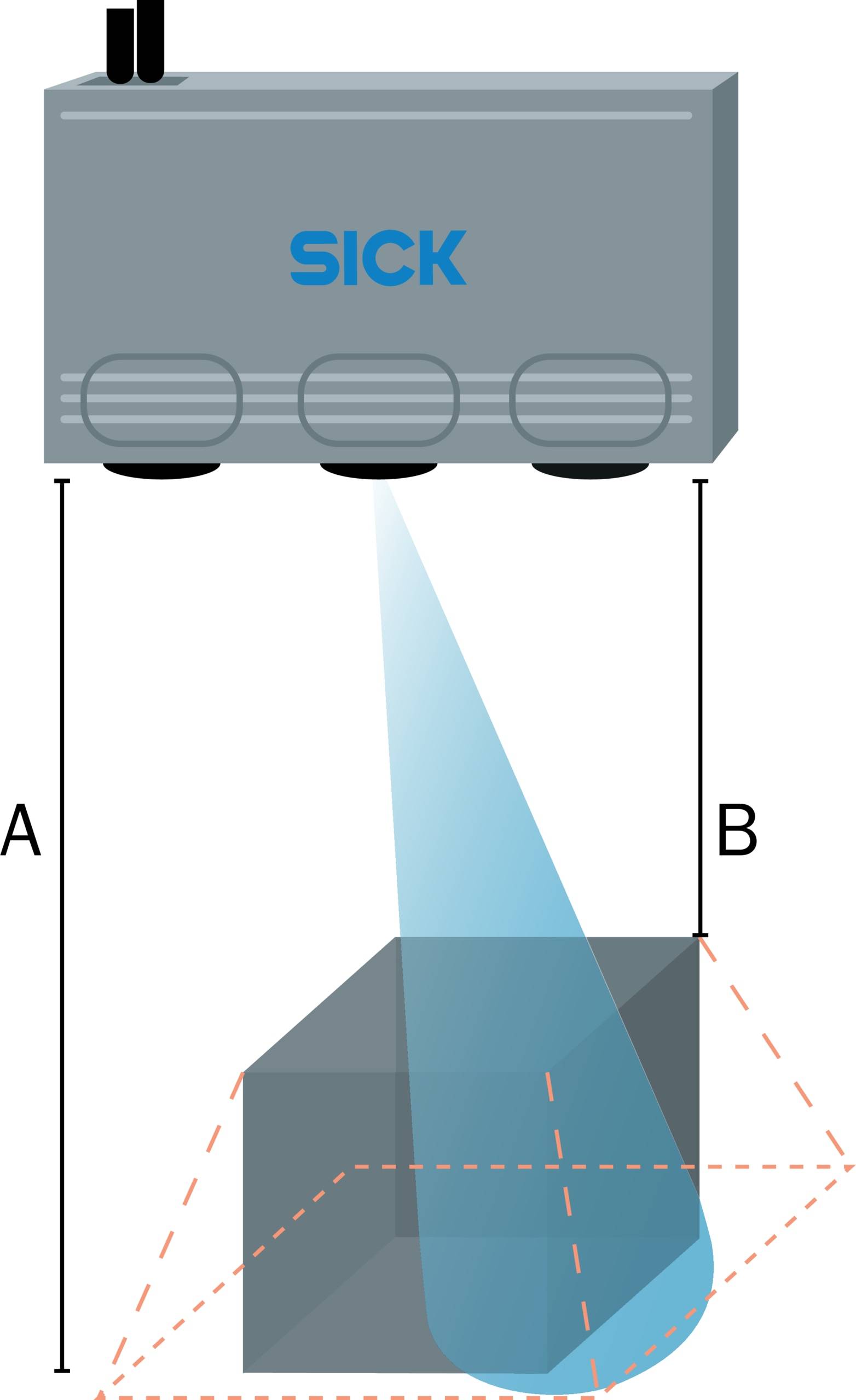

- Example volume of view (Lx Wx H): 1,300mmx 1,200mmx 1,000mm
- Image resolution: 0.4mm... 1mm, depending on the distance to the camera
- Light source:
- : LED, blue, 465nm
- LED class: Risk group 1
- Localization principle: Geometrical shape and edge localization
- Technology: 3D snapshot, image analysis
- Light source:
- : LED, blue, 465nm
- Electrical connection: Male connector M12, 5pin, Lcoded
- Supply voltage 24VDC, 15%
- Current consumption: 5A

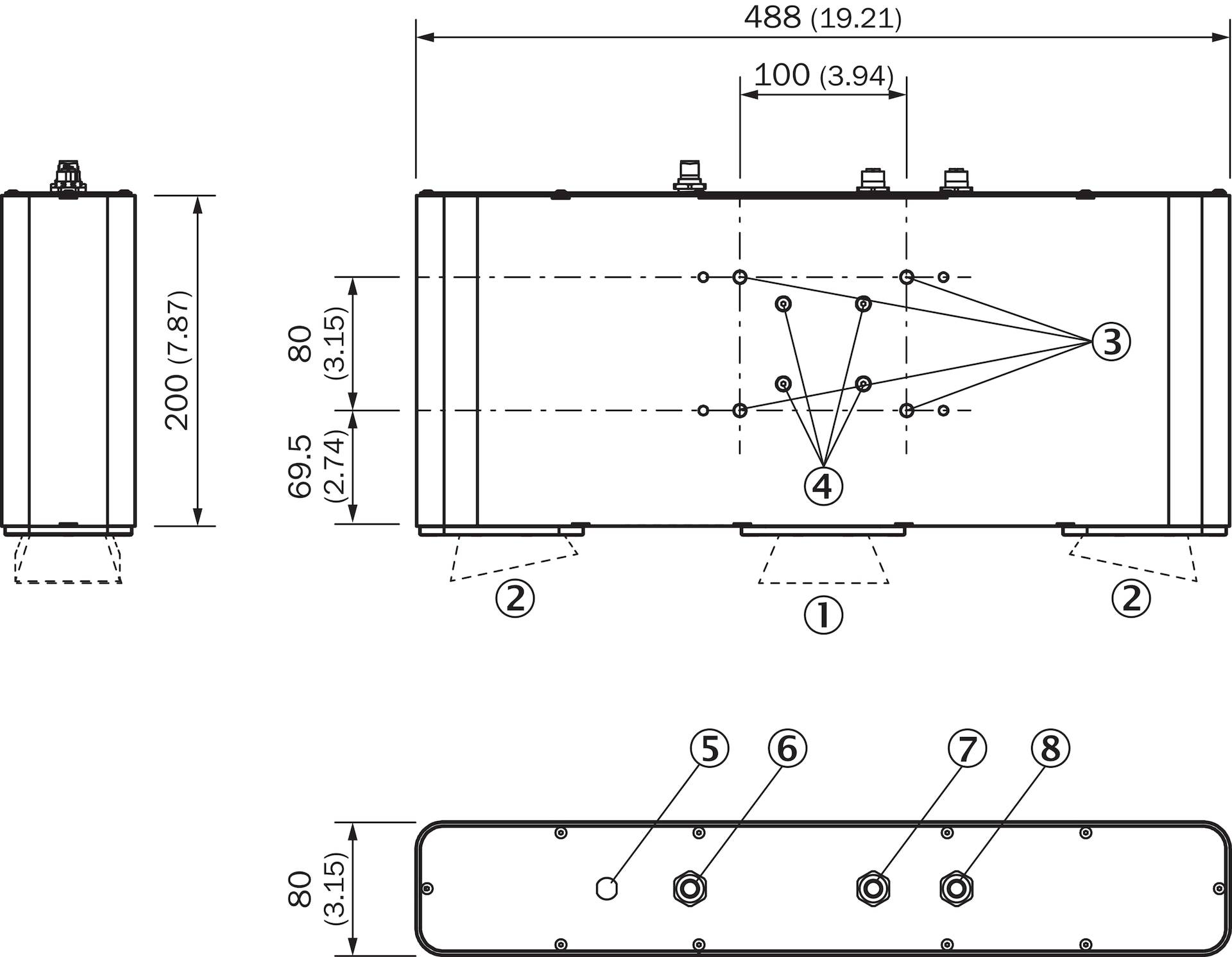

- Dimensions, system (Lx Wx H): 488mmx 200mmx 80mm
- Weight: 2.5kg
- Enclosure rating: IP54
- Part localization time: 3s... 10s, typical
- Part size: (approx.) >30mmx 30mmx 30mm
- Part characteristics: Simple and complex part shapes
- Ethernet: ( , 2x camera PC, PCrobot
- Data transmission rate: 1Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP(camera)
- Electrical connection: M12 male connector, 8pin, xcoded
- Supply voltage
- Electrical connection: Male connector M12, 4pin
- Ethernet: ( , 2x camera PC, PCrobot
- Data transmission rate: 1Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP(camera)
- Electrical connection: M12 male connector, 8pin, xcoded
- Supply voltage
- Electrical connection: Male connector M12, 4pin
- Ambient temperature, operation: 0C... +40C, Noncondensing
- Shock load: 80g/1,9ms, 25g/6ms
- Vibration load: 30500Hz/10g
- Items supplied: X36 camera PLB Application Software
- Factory calibrated:
- EU declaration of conformity
- ACMA declaration of conformity
- ChinaRoHS
- ECLASS 5.0: 27381501
- ECLASS 5.1.4: 27381501
- ECLASS 6.0: 27381590
- ECLASS 6.2: 27381590
- ECLASS 7.0: 27381590
- ECLASS 8.0: 27381590
- ECLASS 8.1: 27381590
- ECLASS 9.0: 27381590
- ECLASS 10.0: 27381590
- ECLASS 11.0: 27381591
- ECLASS 12.0: 27381591
- UKCA
Ja
