Sick SLG25S-050FAR21D05, Automatisierungslichtgitter, P/n: 1134041 kaufen

Sick SLG25S-050FAR21D05, Automatisierungslichtgitter, P/n: 1134041-0

Sick SLG25S-050FAR21D05, Automatisierungslichtgitter, P/n: 1134041-1

Sick SLG25S-050FAR21D05, Automatisierungslichtgitter, P/n: 1134041-2

1/3

Verpackungsart

Piece

Produkt-Art

Lichtgitter

Höhe

499.2 mm

Typ

SLG25S-050FAR21D05

Ausführung

Sender

Lieferung Do., 8. Okt.

6 Stück

Neu

Rechnungsstellung für alle Partner-Artikel jetzt direkt durch Conrad

Anzahl

Stück

Gesamt

1.079,30 €

zzgl. MwSt.

Kostenfreier Versand

Nur noch 6 Stück verfügbar

14 Tage Rückgaberecht inklusive

Sie haben bereits das beste Angebot für Ihre Menge.

Die optimale Auswahl für die eingegebene Menge wird automatisch berechnet, inklusive Preis (exkl. Versand) und Lieferzeit.

Rechtliche Bedenken melden

Umwelt & Entsorgung (Elektrogeräte, Batterien, Verpackungen)

Technische Daten

Included with delivery: 1 sender 1 receiver 1 Quick Start Guide 1x safety instruction
Functional principle: Sender/receiver
Sensing range:
Limit values: 440mm... 4,900mm
Parallel beam (recommended): 440mm... 3,500mm
3x cross beam (recommended): 440mm... 3,500mm
Blind zone:
Distance from 1st Beam to leading edge of housing (connection side): 4.6mm
Distance from last beam to leading edge of housing (top): 19.6mm
Detection height: 500mm
Beam separation: 25mm
Optical light exit: Flat
Detection capability:
Minimum detectable object (MDO), parallel beam: 30mm
Minimum detectable object (MDO), 3x cross beam: ≥16.5mm
Factory setting:
Beam function: Parallel beam
Pin 2(MF): Teachin input
Pin 4(OUT): Object detection output= LOW
IOLink (process data): Q L /Q int Status, System status, Beam status
Teachin (default): Teachin input
Adjustment:
IOLink: For configuring the sensor parameters and Smart Task functions
Emitted beam:
Light source: LED
Type of light: Infrared light
Number of beams: 20
LED key figures:
Normative reference: EN62471:200809 | IEC62471:2006, modified
LED risk group marking: Free group
Wave length: 850nm
Average service life: Average service life: 100,000h at T U = +25C
Time specifications:
Initialization time: 0.4s... 2s
Teachin time: 0.75s... 50s
Scan time, parallel beam: 1.3ms
Scan time, cross beam: 2.6ms
Repeatability, parallel beam: 1.3ms
Repeatability, cross beam: 4ms
Minimum dwell time, parallel beam: 2.6ms
Minimum dwell time, cross beam: 5.3ms
Max. response time, parallel beam: 4ms
Max. response time, cross beam: 8.2ms
Type of synchronization: Optical (2beams)
Sensing range:
Limit values: 440mm... 4,900mm
Parallel beam (recommended): 440mm... 3,500mm
3x cross beam (recommended): 440mm... 3,500mm
Blind zone:
Distance from 1st Beam to leading edge of housing (connection side): 4.6mm
Distance from last beam to leading edge of housing (top): 19.6mm
Detection capability:
Minimum detectable object (MDO), parallel beam: 30mm
Minimum detectable object (MDO), 3x cross beam: ≥16.5mm
Factory setting:
Beam function: Parallel beam
Pin 2(MF): Teachin input
Pin 4(OUT): Object detection output= LOW
IOLink (process data): Q L /Q int Status, System status, Beam status
Teachin (default): Teachin input
Adjustment:
IOLink: For configuring the sensor parameters and Smart Task functions
Emitted beam:
Light source: LED
Type of light: Infrared light
Number of beams: 20
LED key figures:
Normative reference: EN62471:200809 | IEC62471:2006, modified
LED risk group marking: Free group
Wave length: 850nm
Average service life: Average service life: 100,000h at T U = +25C
Time specifications:
Initialization time: 0.4s... 2s
Teachin time: 0.75s... 50s
Scan time, parallel beam: 1.3ms
Scan time, cross beam: 2.6ms
Repeatability, parallel beam: 1.3ms
Repeatability, cross beam: 4ms
Minimum dwell time, parallel beam: 2.6ms
Minimum dwell time, cross beam: 5.3ms
Max. response time, parallel beam: 4ms
Max. response time, cross beam: 8.2ms
IOLink: V1.1
Data transmission rate: COM3 (230,4kBaud)
Maximum cable length: 20m
Cycle time: 2.3ms
Process data length: 32Byte
IOLink: V1.1
Data transmission rate: COM3 (230,4kBaud)
Maximum cable length: 20m
Cycle time: 2.3ms
Process data length: 32Byte
Supply voltage U B : DC 18VDC... 30VDC
Ripple: 1.3V pp
Power consumption:
Sender: 36.5mA
Receiver: 51mA
Digital output:
Number: 2
Type: Pushpull: PNP/NPN
Output signal voltage HIGH/LOW: U B 3 V/3 V
Output load, Inductive: 1H
Output load, capacitive: 100nF
Output current I max. : 100mA
Output current, rest: 0.5mA
Digital input:
Number: 1
Input signal voltage HIGH/LOW: >15 V/5 V
Protection class: III
UL File No.: NRKH.E181493 & NRKH7.E181493
Circuit protection: U V connections, reverse polarity protected Output Q shortcircuit protected Outputs overcurrent and shortcircuit protected
Power consumption:
Sender: 36.5mA
Receiver: 51mA
Digital output:
Number: 2
Type: Pushpull: PNP/NPN
Output signal voltage HIGH/LOW: U B 3 V/3 V
Output load, Inductive: 1H
Output load, capacitive: 100nF
Output current I max. : 100mA
Output current, rest: 0.5mA
Digital input:
Number: 1
Input signal voltage HIGH/LOW: >15 V/5 V

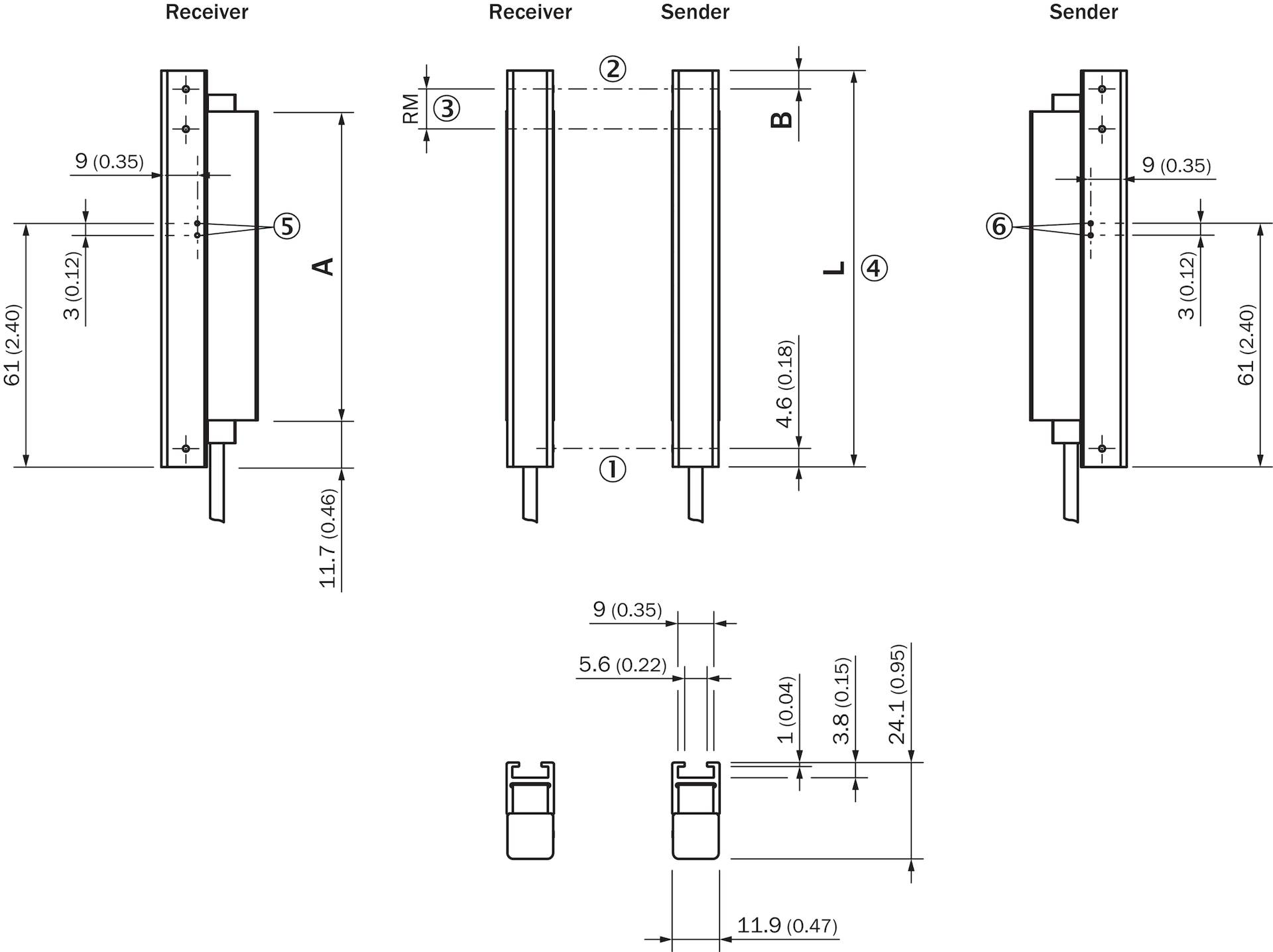

Dimensions (Wx Hx D):
Width: 11.8mm
Height: 499.2mm
Depth: 24.1mm
Connection type: Cable with M12 male connector, 4pin
Connection type Detail:
Cable diameter: 3.4mm
Conductor cross section: 0.14mm
Length of cable: 150mm
Cable material: PVC
Material:
Housing: Aluminum
: Plastic
Front screen: PMMA
Weight: 1,060g
Overvoltage protection (required): 1
Dimensions (Wx Hx D):
Width: 11.8mm
Height: 499.2mm
Depth: 24.1mm
Connection type Detail:
Cable diameter: 3.4mm
Conductor cross section: 0.14mm
Length of cable: 150mm
Cable material: PVC
Material:
Housing: Aluminum
: Plastic
Front screen: PMMA
Enclosure rating: IP65, IP67
Ambient temperature, operation: 25C... +55C
Ambient temperature, storage: 25C... +70C
Ambient light immunity: Indirect: 50,000lx
Shock resistance: 10g, 16ms, DINEN60068227
Vibration resistance: 10150 Hz 0.5mm, IEC6006826
Air humidity: 96%, relative humidity (no condensation)
Electromagnetic compatibility (EMC): EN6100062, EN6100064
Smart Task name: Base logics
Logic function: Direct AND OR
Timer function: Deactivated Switchon delay Off delay ON and OFF delay Impulse (one shot)
Switching signal:
Switching signal Q L1 : Switching output
Switching signal Q L2 : Switching output, external input
Switching signal:
Switching signal Q L1 : Switching output
Switching signal Q L2 : Switching output, external input
Diagnostics functions:
Device state: Hardware error, temperature warning, operating hours warning
Communication state: Pin shortcircuit error, invalid process data
Status of the light signal: Teach error, synchronization error, qualityofrun alarm
Alarm output: Yes
Diagnostics functions:
Device state: Hardware error, temperature warning, operating hours warning
Communication state: Pin shortcircuit error, invalid process data
Status of the light signal: Teach error, synchronization error, qualityofrun alarm
Alarm output: Yes
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
MAR declaration of conformity
ChinaRoHS
cULus Certificate
IOLink:
Photobiological safety (IEC EN 6247:
ECLASS 5.0: 27270910
ECLASS 5.1.4: 27270910
ECLASS 6.0: 27270910
ECLASS 6.2: 27270910
ECLASS 7.0: 27270910
ECLASS 8.0: 27270910
ECLASS 8.1: 27270910
ECLASS 9.0: 27270910
ECLASS 10.0: 27270910
ECLASS 11.0: 27270910
ECLASS 12.0: 27270910
ETIM 5.0: EC002549
ETIM 6.0: EC002549
ETIM 7.0: EC002549
ETIM 8.0: EC002549
UNSPSC 16.0901: 39121528

Verpackungsart: Piece

Produkt-Art: Lichtgitter

Typ: SLG25S-050FAR21D05

Ausführung: Sender

Besonderheiten: LED-Anzeige

Max. Stromaufnahme: 100 mA

Ansprechzeit: 4 ms

Kleinstes zu erkennendes Objekt (Durchmesser): 16.5 mm

Kabellänge: 150 mm

Sendertyp: LED Infrarot

Wellenlänge: 850 nm

Reichweite (min.): 440 mm

Reichweite (max.): 4900 mm

Ausgänge: PNP

Ausgangssignal (max.): 3 V

Ausgangsstrom: 100 mA

Zulassungen (Sensoren): cULus

Sicherheitskategorie: 3

Strahlen: 20

Strahlenabstand: 25 mm

Schutzfeldhöhe: 500 mm

Gesamt-Höhe: 500 mm

Inhalt: 1 St.

Breite: 11.8 mm

Höhe: 499.2 mm

Abm.: (B x H) 11.8 mm x 499.2 mm

Min. Temperatur: 25 °C

Max. Temperatur: 55 °C

UKCA: Ja

Beschreibung

Sick Automa. Lichtgitter SLG25S-050FAR21D05

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Automa. Lichtgitter schaltendTyp:SLG25S-050FAR21D05Ausführung des elektrischen Anschlusses:Kabel mit SteckverbinderBetriebsmittel-Schutzklasse:Schutzklasse 3Max. Ausgangsstrom am sicheren Ausgang:100 mAReichweite des Schutzfeldes:3,5 mSpannungsart:DC
Sick Automa. Lichtgitter SLG25S-050FAR21D05: weitere Details
Schaltende Automatisierungs-Lichtgitter, SLG-2, SLG25S-050FAR21D05, Optischer Lichtaustritt: Flat, Strahlabstand: 25 mm, Betriebsreichweite: 3,5 m, Überwachungshöhe: 500 mm, Leitungslänge: 150 mm EAN: 4047084522116

Geliefert wird: Sick Automa. Lichtgitter schaltend SLG25S-050FAR21D05, Verpackungseinheit: 1 Stk., EAN: 4047084522116

Lieferumfang

Geliefert wird: Sick Automa. Lichtgitter schaltend SLG25S-050FAR21D05, Verpackungseinheit: 1 Stk., EAN: 4047084522116
